Breakthrough board is a small PCB designed to simplify the connection of complex electronic components by exposing their pins in a more accessible layout. It is widely used in prototyping, testing, and early stage product development.
If you’re working with sensors, ICs, or modules, breakout boards help you skip the complexity of PCB design and start testing your ideas straight away. Rather than struggling with small pitch pins or complicated routing rules, you can focus on validating functionality and performance. In this guide, you will understand what a breakout board means, how it works, and when it makes sense to use it in a real engineering project.
What is a Breakout Board?
Breakout boards are compact printed circuit boards that convert complex component pin layouts into simple, usable interfaces.
Many modern chips come in packages such as QFN, BGA, or LGA, which are difficult to solder manually. Breakout boards solve this problem by routing those small pins to larger pads or header pins, making them compatible with jumper cables or breadboards. This approach significantly lowers the barrier to entry for testing advanced components.
In simple terms, it acts as a bridge between:
- Complicated IC packaging
- Easy prototyping environment
For example, a temperature sensor IC may have 10 small pins. The breakout board converts them to clearly labeled pins such as VCC, GND, SDA, and SCL. This allows engineers to connect sensors in minutes rather than spending hours designing custom footprints and layouts.
What is a Breakout Board PCB?
What is the Function of a Breakout Board?
Breakout boards simplify hardware development by performing several important functions beyond just pin expansion.
1. Signal accessibility
This shows pins that are inaccessible due to packaging constraints. This is very useful for debugging and signal measurement.
2. Mechanical convenience
It converts subtle tone packets into a format that can be plugged into a breadboard or interfaced with standard headers.
3. Improved electricity
Many breakout boards include supporting circuitry such as:
- Voltage regulator for flexible power input
- Level switcher for 3.3V and 5V compatibility
- Pull-up resistors for communication protocols
4. Rapid prototyping support
Rather than designing a complete PCB, engineers can validate functionality in minutes using breakout boards.

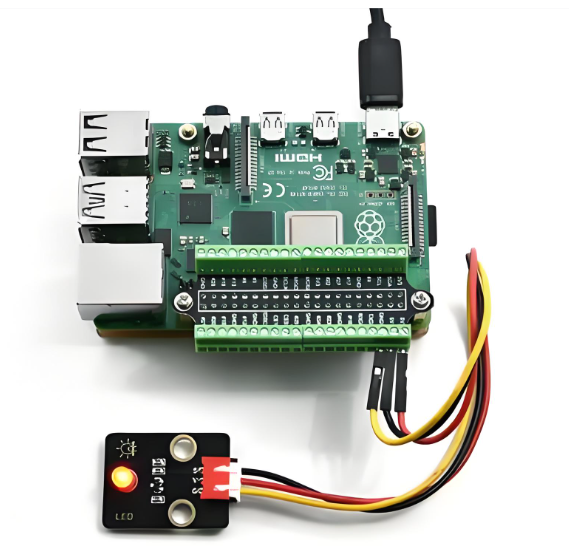

What is a Breakout in Electrical?
In electronics, the term “breakout” refers to the process of redistributing a signal from a dense or complex layout into a more accessible format.
This concept is widely used in advanced PCB designs. For example, in BGA routing, engineers perform “fan penetration” to route signals from the inner pins to the outer layer. This requires careful planning of vias, trace widths, and layer stacking.
Breakout boards are basically a simplified version of this concept. This allows engineers to:
- Access signals without complicated routing
- Do a quick test
- Simplify circuit integration
In high density PCB designs, breakout techniques are also used internally to route signals from the inner layers to the outer layers. This shows that this concept is not limited to prototyping, but is fundamental in PCB engineering.
What Are Breakout Boards Used For in Real Applications?
Breakout boards are not limited to hobby projects. They are widely used in professional engineering environments.
Common applications:
- Evaluate sensors, such as temperature, pressure and IMU sensors
- IoT prototyping and proof of concept development
- Embedded systems testing
- Educational laboratories and training environments
Example:
An engineer testing an accelerometer will use a breakout board to:
- Connect to the microcontroller
- Validate data output
- Customize firmware
Only after validation they will design a custom PCB. In industry, breakout boards are often used in:
- research and development phase
- Functional verification
- Initial firmware development
They reduce risk by enabling rapid iteration before going into production.

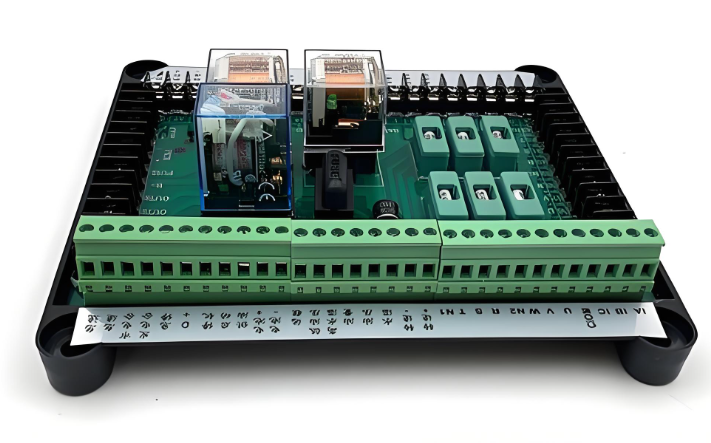

How Does a Breakout Board Work in a Circuit?
Breakout boards work by providing a simple signal routing path between components and the rest of the circuit.
Internal structure:
- Copper traces connect each IC pin to the corresponding header pin
- Supporting components can stabilize the signal
Signal flow:
Components → PCB trace → Pin header → External circuit
The breakout board itself does not process signals. It acts as a passive interface. However, the design still affects performance.
Important technical considerations:
- The trace length affects the signal delay
- A poor foundation can cause noise
- High-speed signals require impedance control
For low frequency applications, these factors are less important. For high-speed designs, engineers must carefully evaluate whether a breakout board is suitable.
How Does a Breakout Board Work in a Circuit?
How to Connect the Breakout Board?
Connecting the breakout board is usually easy, but mistakes often occur at this stage.
Basic connection steps:
- Identify power pins, such as VCC and GND
- Identify the communication interface, such as I2C, SPI, or UART
- Match voltage levels, for example 3.3V vs 5V
- Connect the signal pin to the microcontroller
Example: I2C sensor damage
- VCC → 3.3V or 5V
- GND → Ground
- SDA → Pin data
- SCL → Clock pin
Common mistakes:
- Incorrect voltage supply
- Pull-up resistors for I2C are missing
- Incorrect pin mapping
- Floating ground connection
In practice, most problems reported in engineering forums stem from wiring errors, not board errors. A systematic debugging approach is always recommended:
- Check the power first
- Verify communication lines
- Use tools such as a multimeter or logic analyzer
How to Use a Breakout Board with an Arduino or Raspberry Pi?
Using a breakout board with an Arduino or Raspberry Pi is one of the fastest ways to build a functional prototype.
Basic workflow:
- Connect hardware
- Install the required libraries
- Initialize communication
- Reading and processing data
Example:
An Arduino connected to a temperature sensor can read environmental data in minutes. A Raspberry Pi paired with a breakout IMU can perform motion tracking experiments.
Profit:
- Strong community support
- Extensive library
- Fast debugging
In many cases, engineers start firmware development on platforms such as Arduino using breakout boards, then port the code to embedded systems.
Breakout Board vs Breadboard
This is a common comparison that often causes confusion.
| Feature | Breakout Board | Breadboard |
| Function | Customizing components | Building a circuit |
| Role | Interface | Connection platform |
| Use | Sensors and ICs | Circuit assembly |
| Reusable | Currently | Tall |
Main differences:
Breakout boards and breadboards have different purposes but are often used together.
- Breakout board → simplifies component use
- Breadboard → allows flexible circuit construction
Together, they form a complete prototyping environment.
Do You Need a Breakout Board?
Not every project requires a breakout board. It depends on your stage of development.
You need a breakout board when:
- You are testing a new sensor or IC
- You want rapid prototyping
- You don’t want to design a PCB yet
You may not need it when:
- You switch to mass production
- You need a compact design
- You need optimized signal integrity
Breakout boards are ideal for learning and validation, but are rarely used in the final product.
Do You Really Need a Breakout Board for Your Project?
This question often arises when making design decisions.
Use a breakout board if:
- You are in the prototype phase
- You need flexibility
- You want fast iteration
Move to custom PCB if:
- Stable product
- Size matters
- Reliability is very important
Engineering insight:
Breakout boards are great for learning and testing, but they are not optimized for:
- EMC performance
- Thermal management
- High speed design
In production environments, engineers almost always replace them with custom PCB layouts or complete PCBA solutions. This transition ensures greater reliability, repeatability and cost efficiency.
What are the Most Common Types of Breakout Boards?
Breakout boards are available in various shapes depending on the application.
1. Sensor break board
- Temperature sensor
- Pressure sensor
- IMU module
2. Communication breakthrough board
- USB to UART
- CAN bus module
3. Power breakout board
- Voltage regulator
- Electrical distribution board
4. IC adapter board
Each type has a specific role, but they all have the same goal: simplifying connectivity.
FAQs
1. What is the difference between breakout board and PCB?
Breakout boards are one type of PCB, but they are designed specifically to simplify access to component pins. Standard PCBs are usually part of a complete circuit design.
2. What is a breakout board?
The meaning of breakout board refers to a board that “breaks down” component pins into a format that is easier to use for testing and integration.
3. Breakout board vs breadboard: which is better?
They are not a replacement. Breakout boards adapt components, while breadboards connect circuits. Most projects use both.
4. Can breakout boards be used in production?
They are rarely used in final products because they are not optimized for cost, size, or performance.
5. Why is my breakout board not working?
Common reasons include wrong wiring, wrong voltage, or missing pull-up resistor.
6. Are breakout boards reusable?
Yes, most breakout boards can be reused multiple times if handled properly.
